4" Round Leaf Eater Advanced Rain Head

Rain Harvesting Leaf Eater Advanced Rain Head, part# RHAD98 is the next generation Rain Head, featuring the new Clean Shield™ (single screen) technology and VH Pivot™ outlet. The Leaf Eater Advanced™ Rain Head prevents debris from entering the Rain Harvesting system, improves water quality and reduces tank/cistern maintenance.

The single screen incorporates Clean Shield™ technology which deflects leaves and debris away from the flow of water. This minimises maintenance and enhances catchment efficiency. This Rain Head incorporates a VH Pivot™ outlet that swivels to suit vertical or horizontal downspouts. The Leaf Eater Advanced™ can also be used as a debris removing device even when rainwater is not being collected.

Installation Instructions

Gutter & Mid-Mount Installation

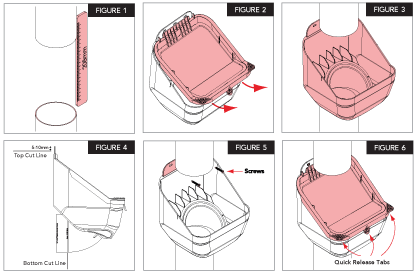

1.  Gutter: Measure 10½” from the bottom of the existing gutter pop and remove this section of downspout. Ensure the cut edge is clean and smooth. Mid-Mount: Remove 10½” of downspout where the Leaf Eater Advanced™ is to be situated. Ensure all cut edges are clean and smooth. (figure 1)

2.  Using the quick release tabs remove the Clean Shield™ screen by lifting it up and then out. (figure 2)

3.  Insert the Leaf Eater Advanced™ by sliding it up over the cut section and then down into position. The Leaf Eater Advanced™ outlet should be slid firmly onto the bottom down pipe until it can be pushed no further. (figure 3)

4. Screw the Leaf Eater Advanced™ into position through the screw slots provided. Ensure appropriate screws and anchors (if required) are used. (figure 5)

5. Insert the Clean Shield™ screen into the Leaf Eater Advanced™. Ensure the Clean Shield™ screen is sitting firmly in place and check installation is secure. (figure 6)

Horizontal (Rear Outlet) Installation

1.  Using the quick release tabs remove the Clean Shield™ screen by lifting it up and then out. (Figure 2)

2.  Swivel the outlet to the horizontal position – some force may be required.

3.  Position the Leaf Eater Advanced™ next to existing pipework, mark and cut top and bottom cut lines as per figure 4. Ensure the cut edge is clean and smooth.

4.  Insert the Leaf Eater Advanced™ by sliding the rear outlet into the horizontal pipe. The back fixing plate must sit behind the top section of downspout. (figure 3)

5.  Screw the Leaf Eater Advanced™ into position through the screw slots provided. Ensure appropriate screws and anchors (if required) are used. (figure 5)

6.  Insert the Clean Shield™ screen into the Leaf Eater Advanced™. Ensure the Clean Shield™ screen is sitting firmly in place and check installation is secure. (figure 6)
